| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Advanced Instruments |
| إصدار الشهادات: | ASTM D1160 |
| رقم الموديل: | فد-R3 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | US$10000-15000/set |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 15 يوما |
| شروط الدفع: | T/T ، L/C ، D/P. |
| القدرة على العرض: | 500sets في الشهر |
| اختبار معيار: | أستم D1160، جيجابايت/T9168 | مزود الطاقة: | AC 220 V ± 10 ٪ ، 50 هرتز |
|---|---|---|---|
| إجمالي استهلاك الطاقة: | ≤1800W | قوة فرن تسخين القارورة: | 0 ~ 500 واط، قابل للتعديل |
| أدنى درجة حرارة: | ≥ - 40 درجة مئوية | نطاق قياس الضغط المطلق: | (2.00-170.00) ملم زئبقي ± 0.01 ملم زئبق |
| الرطوبة النسبية: | ≤ 85 ٪ | الوزن الصافي: | 78 كجم |
| إبراز: | ASTM D1160 Laboratory Oil Distillation Analyzer,Petroleum Product Vacuum Distillation Analyzer,Vacuum Distillation Test unit,Petroleum Product Vacuum Distillation Analyzer,Vacuum Distillation Test unit |
||

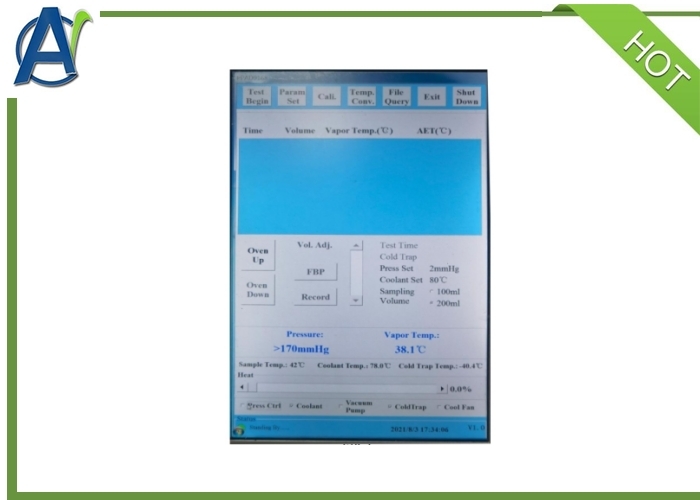

6.The heating power of the distillation flask can be adjusted with the touch screen. It is displayed on the screen in a scroll bar mode. It can be adjusted at any time and with the precision of 0.5%.
|
Operating power supply
|
AC(220±10%)V 50Hz
|
|
Total power consumption
|
≤1800W
|
|
Flask heating furnace power
|
0~500W
(continuously adjustable) |
|
Range of the temperature control for condensate circulating water
|
room temperature +5℃(lowest 30℃)~80±3℃,continuously adjustable
|
|
Absolute pressure setting
|
2mmHg,5mmHg,10mmHg,20mmHg,50mmHg
|
|
Absolute pressure measurement range
|
2.00~170.00 mmHg, automatic constant
|
|
Accuracy of absolute pressure control
|
Pressure<1kPa(7.5mmHg),accuracy<0.01kPa(0.075mmHg)
Pressure≥1kPa(7.5mmHg),accuracy≤1% of absolute pressure |
|
Working environment
|
Ambient temp.:5~35℃, RH:< 85%
|
|
Dimensions
|
800mm×500mm×900mm(L×W×H)
|
|
Net Weight
|
78kg
|
FAQ
1.What's the delivery time?
About 30days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
