IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables

IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables
المعلومات الأساسية
مكان المنشأ: الصين
اسم العلامة التجارية: Advanced Instruments
إصدار الشهادات: IEC 60754~1&2
رقم الموديل: AIC52161
الحد الأدنى لكمية: 1 مجموعة
الأسعار: $5000~$10000
تفاصيل التغليف: حالة الخشب الرقائقي
وقت التسليم: 60 يوما
شروط الدفع: خطاب الاعتماد، تي/تي، د/ف
القدرة على العرض: 20sets/شهر
افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ
بعد الخدمة: الاستجابة خلال 12 ساعة و12 شهرًا ضمان: 1سنة كاملة
حزمة النقل: حالة الخشب الرقائقي اختبار معيار: إيك 60754-1&2
مزود الطاقة: تيار متردد 220 فولت، 50/60 هرتز، 2 أمبير الكربون المنشط (ترشيح الهواء): يمر
سيليكون (تجفيف الهواء): الغاز الجاف متر التدفق: 0.1 ~ 1 لتر / دقيقة
عرض: شاشة ملونة تعمل باللمس مقاس 7 بوصة فرن التدفئة: 220 مم * 600 مم
قوة فرن التدفئة: 4 كيلو واط كائن اختبار: الأسلاك والكابلات
إبراز:

IEC 60754-1&2,PH & Conductivity Testing Device,Cable Gas Release Acidity Test Chamber

,

PH & Conductivity Testing Device

,

Cable Gas Release Acidity Test Chamber

General Introduction

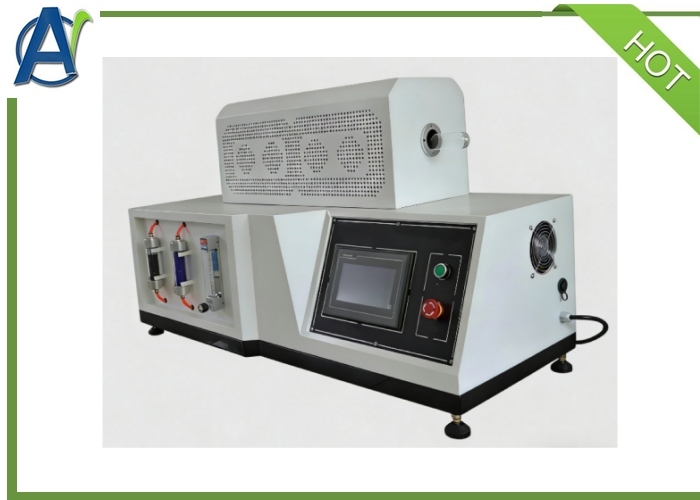

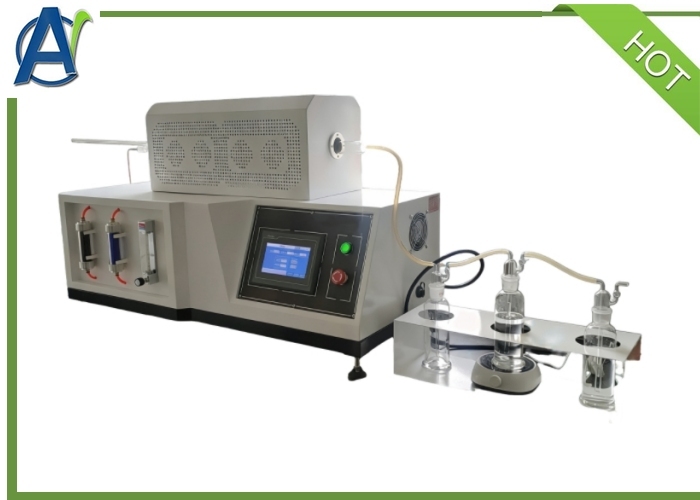

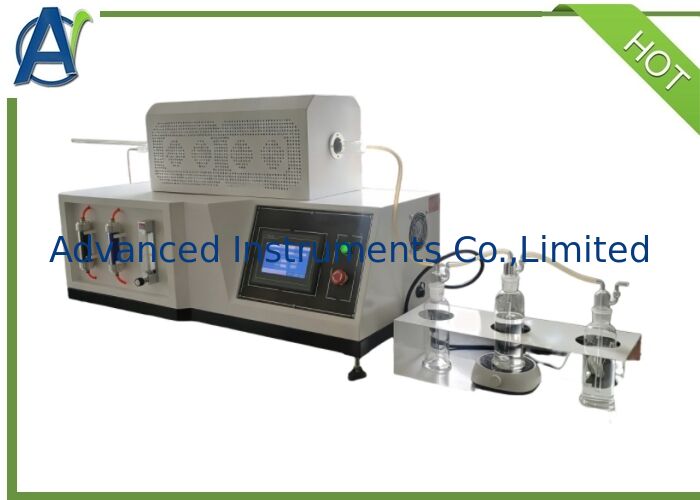

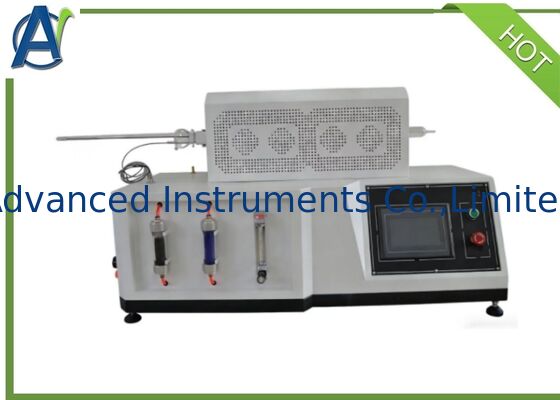

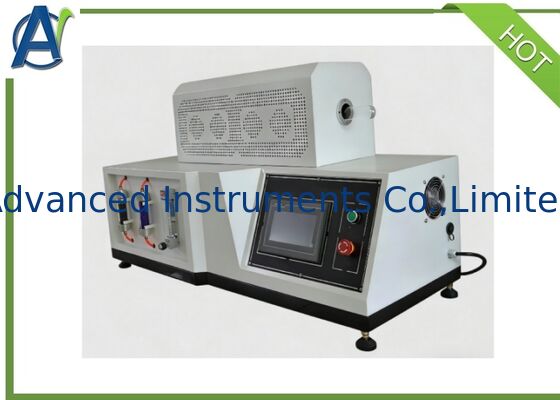

Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃).

Standards:

  • IEC 60754-1~2-1994
Technical parameters

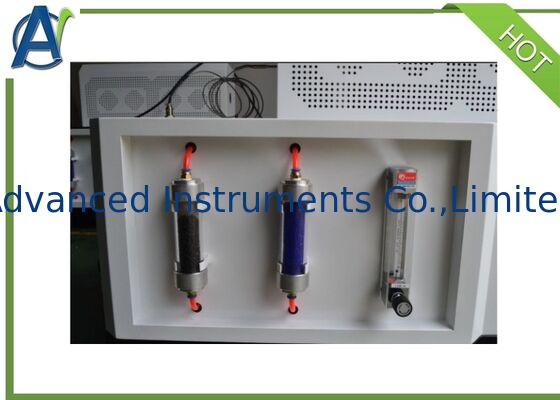

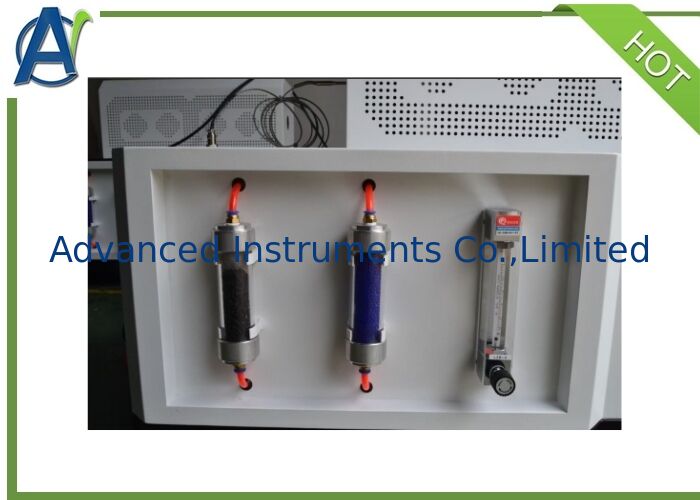

  • Activated carbon (air filtering): filter for filtering the supplied air
  • Silica gel (air drying): a device for drying the supplied air
  • Flowmeter: 0.1~1L/min, a device to control the flow of the air source
  • Thermocouple: K type of high temperature resistant stainless thermocouple, range: 0~1300℃
  • Quartz tube: φ40×800
  • Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water
  • PH meter: a device used for measuring the pH acidity (ray magnetic)
  • Conductivity meter: a device for measuring conductivity of combustion gas(ray magnetic)
  • 7 "color touch screen and PLC and PID automatic calculation of the modulecontrol heating furnace temperature
  • Heating furnace: φ220×600; effective heating space: φ43×550; power: 4KW
  • Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup, quantity: 1
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables 0
Technical specifications
  • Dimensions: Main unit 1200mm(W)x520mm(D)x725mm(H)
  •                     Placement table 2500mm(W)x 600mm(D)
  • Power supply:AC220V, 50/60Hz, 21A
  • Reagents,glassware, gas source (provided by the customer)
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
