| Place of Origin: | China |
|---|---|
| اسم العلامة التجارية: | Advanced Instruments |
| إصدار الشهادات: | UL1581;UL2556 |
| Model Number: | AIC-52018 |
| Minimum Order Quantity: | 1set |
| الأسعار: | $10000~$20000 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 90days |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | 10sets/month |
| After Service: | Response in 12 Hours 12 Months | Warranty: | 1full Year |
|---|---|---|---|
| Transport Package: | Plywood Case | Test Standard: | UL1581;UL2556 |
| Gas: | Air and Propane | Application: | Cable and Wires Testing |
| Color: | Grey | Operation: | Automatic |
| Metal covering size: | 300mmx450mmx1200mm | Power Supply: | AC220V,50/60Hz,5A |
| Blast burner: | nominal power 1kw | Burning device: | automatic high-tension ignition |
| Specification: | 1500mm×700mm×1200mm(Test Bracket size) | Function: | Cable Fire Resistance,Shock and Water Spray Tester |
| Test flame temperature: | 950±40°C | Air Source: | Methane,compressed air |
| Control System: | PLC with Touch Screen | Language: | English |
| Flame time setting: | 0~999S | ||
| إبراز: | UL1581 ,VW-1 Burning Test Machine,Vertical Specimen Flammability Tester,VW-1 Burning Test Machine,Vertical Specimen Flammability Tester |
||

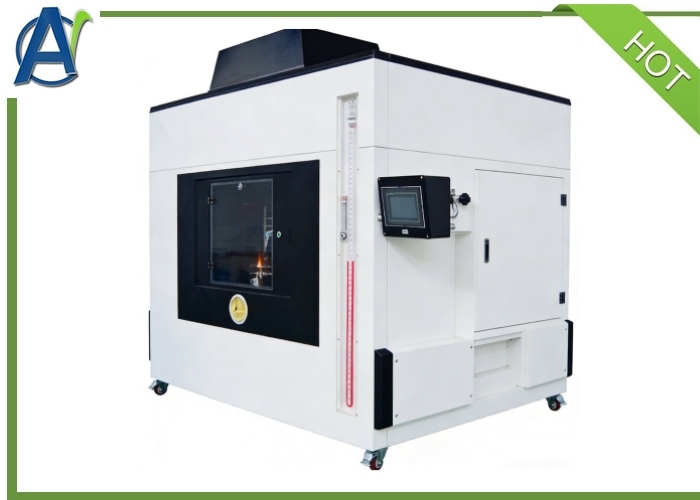

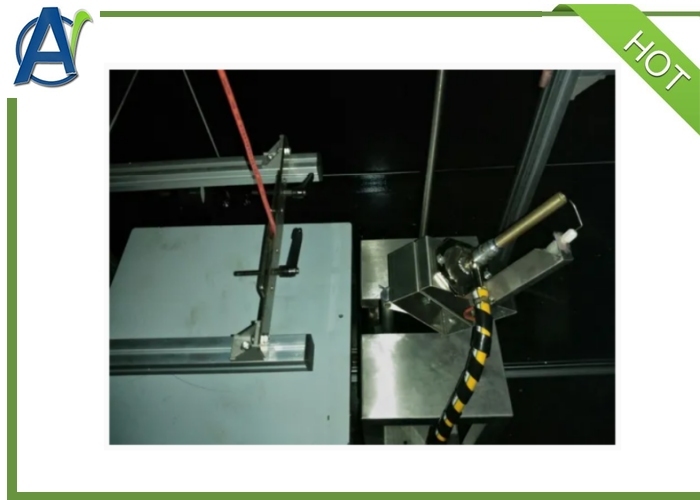

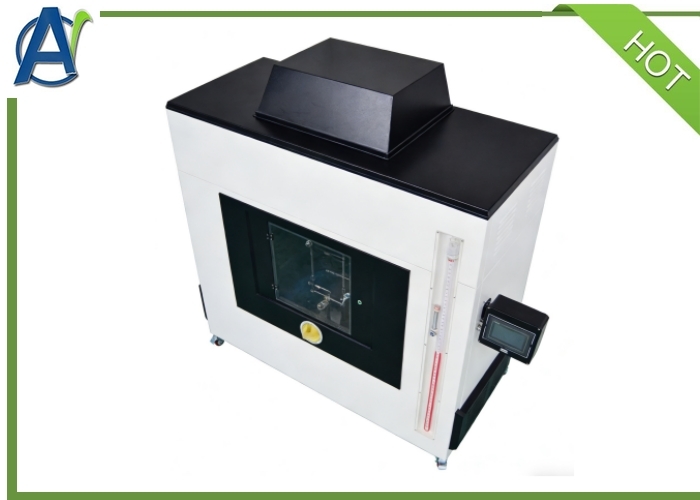

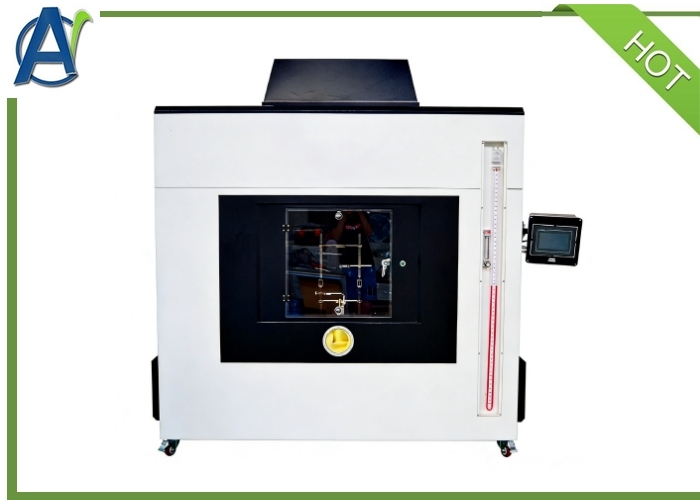

VW-1 (Vertical-specimen) Flame Tester is designed in accordance with UL1581 and approved by Guangzhou Meihua UL corporation,completely in line with W.1 fame test standard, is used for test of W.1 and FT.2. it's economic and applicable, which is widely used inwire and cable industry. The test is taken in a sealing laboratory which volume is 4.32 cubic meters. Test methods: Adjust the height ofthe flame, put the top of the fame under the sample to burn for 15s, then put out for 15s. Examine the sample' burning situation afterrepeating 5 times. You can set the burning, go out time and times of repetition freely and make it operate automatically.
1.2 Related standards
