| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | MHT-8 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | USD$70,000~80,000 |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 30 يومًا |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد |
| القدرة على العرض: | 20sets في الشهر |
| معيار الاختبار: | أستم D7097، أستم D6335، ش/T0834 | ضمان: | 1سنة كاملة |
|---|---|---|---|
| تراندمارك: | أدوات متقدمة | خدمة صانعي القطع الأصلية: | متاح |
| لغة: | إنجليزي | مزود الطاقة: | AC (220 ± 10 ٪) V ، 50 هرتز |
| لغة البرمجيات: | إنجليزي | طريقة الاختبار: | تيوست مهت |
| دقة درجة الحرارة: | ± 2 ℃ | كمية العينة: | 8.4 جرام |
| سرعة تدفق الغاز: | 10 مل ± 0.2 مل | عملية: | تلقائي |
| نطاق درجة الحرارة: | المحيطة ~ 500 درجة مئوية | وقت الاختبار: | 24 ساعة |
| سرعة تدفق المضخة: | 0.25 جرام / دقيقة | عرض: | شاشات الكريستال السائل |
| إبراز: | ASTM D7097 engine oil tester,oil oxidation stability tester,thermal oxidation deposits test machine |
||

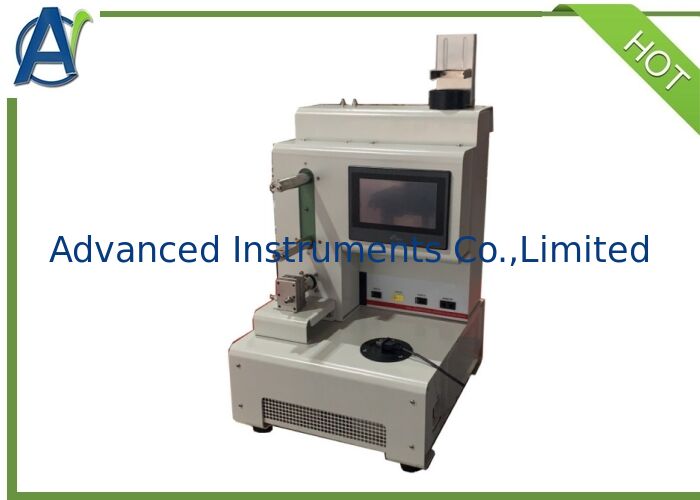

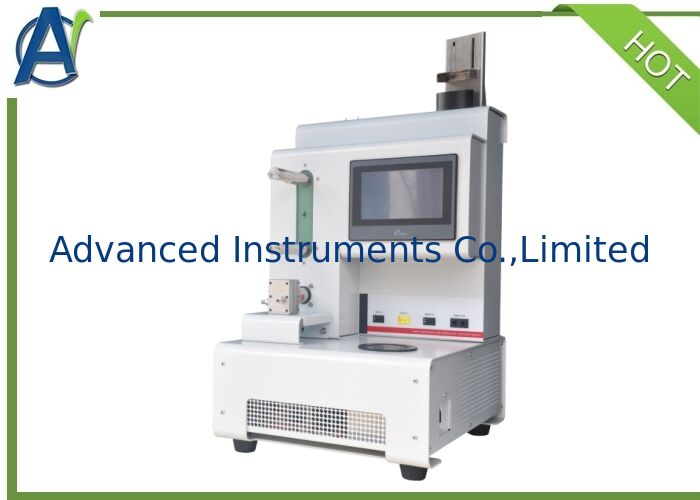

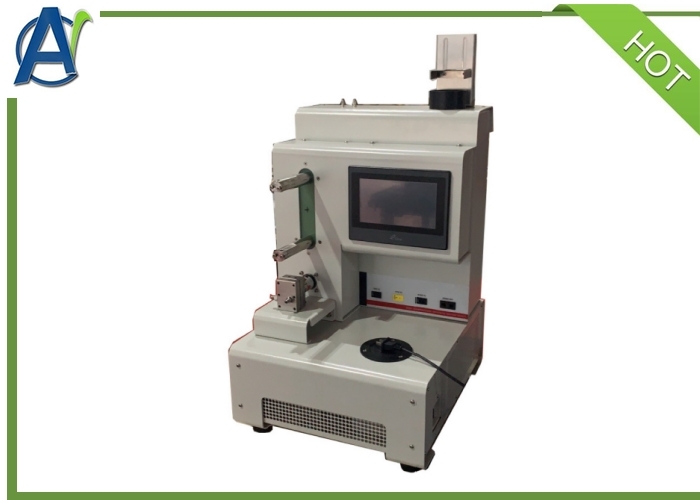

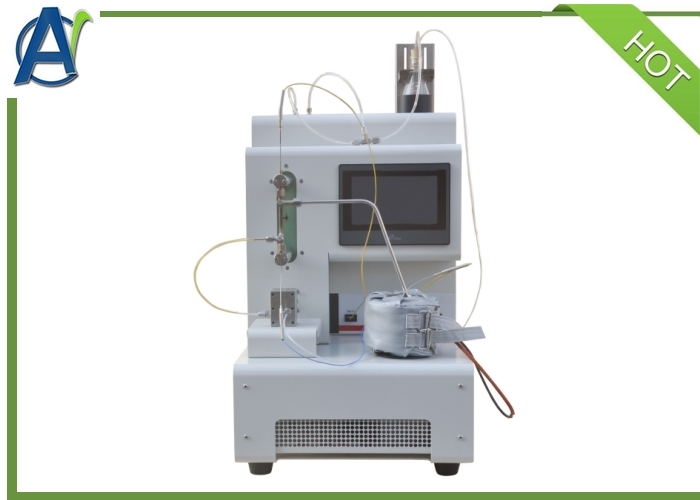

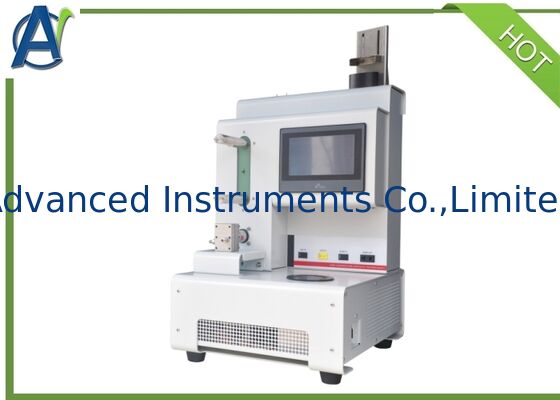

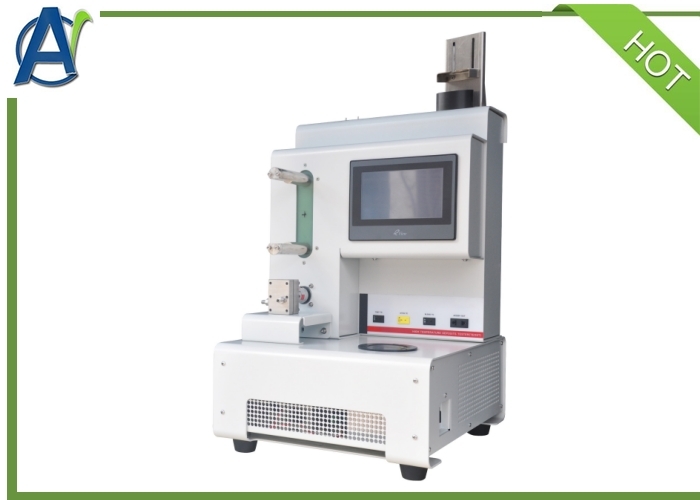

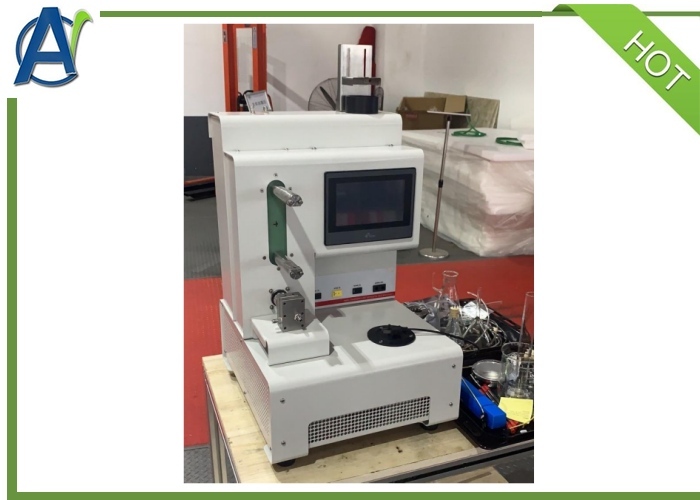

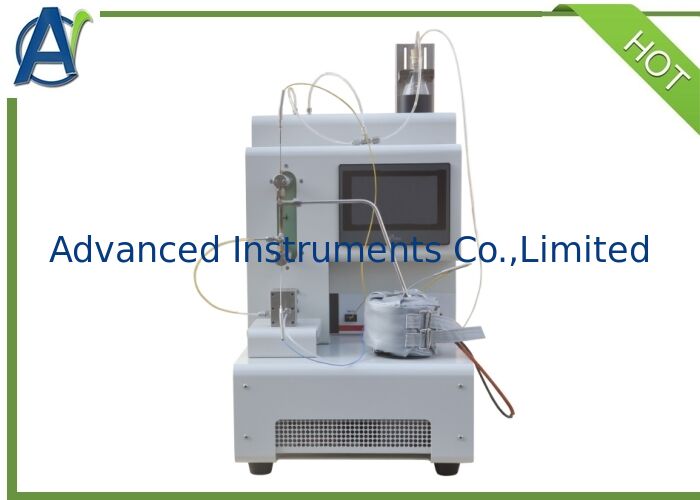

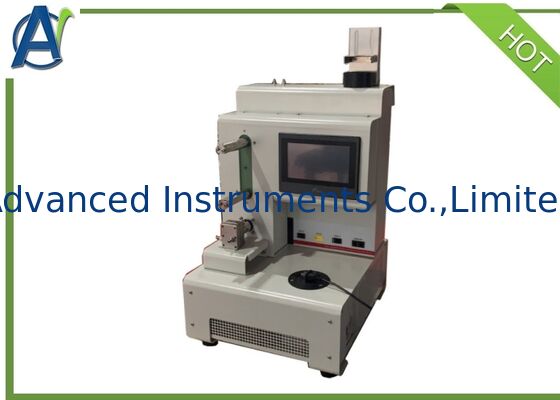

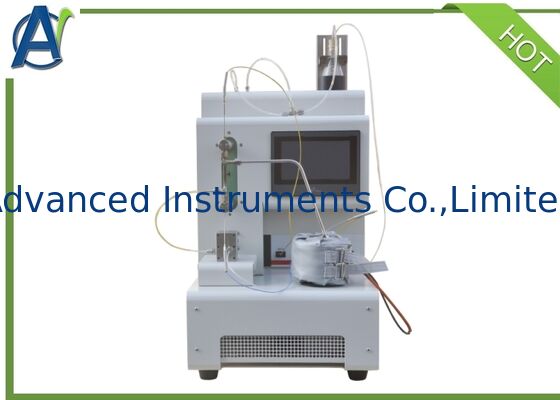

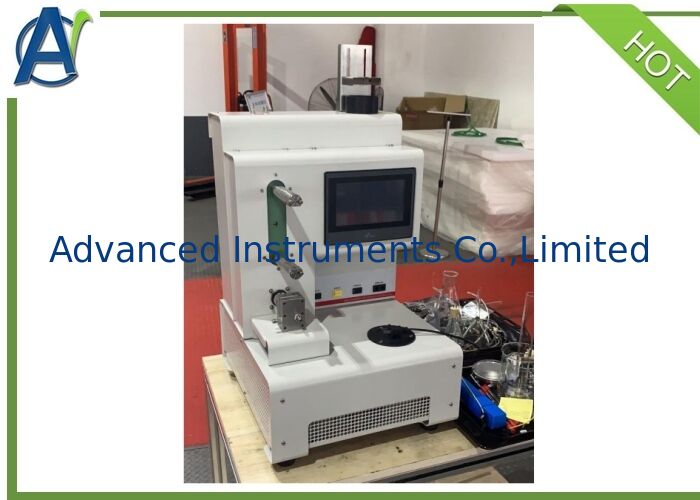

Thermal Oxidation Deposits Tester
I. Introduction:
High-Temperature Oxidation Deposits Tester is used for thermo-oxidation engine oil simulation test.This test method covers the procedure to determine the mass of deposit formed on a specially constructed test rod exposed to repetitive passage of 8.5 g of engine oil over the rod in a thin film under oxidative and catalytic conditions at 285 °C.
II. Main Features
1. This instrument can fully replace imported equivalent products.
2. All key components are imported, including temperature controller, deposition rod, gear pump, flow sensor and other core parts.
3. Presettable working time; the instrument will stop automatically after test completion.
4. Supporting optional accessory installation to meet test requirements of ASTM D6335 and SH/T0750 standards.
5. Equipped with catalytic magnetic mixing device with adjustable mixing time and mixing speed.
6. Built-in automatic electronic flow controller to stably and accurately control gas flow rate at 10ml±0.2ml/min.
7. Full parameter setting is completed via touch screen, and one-click test start is available after parameter configuration.
III. Specifications:
| Applicated standard | ASTM D7097 ,SH/T0834 |
| Test temperature | ambient~500ºC±2ºC |
| Test time | 24 hours |
| Sample quantity | 8.4g |
| Pump flow speed | 0.25g/min |
| Gas flow speed | 10ml±0.2ml |
| Power supply | AC220V 50HZ |
| Size | 450mm*450mm*560mm |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
