| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | CE |
| رقم الموديل: | إيك-4693 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | USD$20,000~25,000 |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 30 يومًا |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد |
| القدرة على العرض: | 20sets في الشهر |
| معيار الاختبار: | أيه إس تي إم دي 4693 | ضمان: | 1سنة كاملة |
|---|---|---|---|
| تراندمارك: | أدوات متقدمة | خدمة صانعي القطع الأصلية: | متاح |
| لغة: | إنجليزي | مزود الطاقة: | AC (220 ± 10 ٪) V ، 50 هرتز |
| لغة البرمجيات: | إنجليزي | طريقة الاختبار: | تيوست مهت |
| دقة درجة الحرارة: | ± 2 ℃ | كمية العينة: | 8.4 جرام |
| سرعة تدفق الغاز: | 10 مل ± 0.2 مل | عملية: | تلقائي |
| نطاق درجة الحرارة: | المحيطة ~ 500 درجة مئوية | وقت الاختبار: | 24 ساعة |
| سرعة تدفق المضخة: | 0.25 جرام / دقيقة | عرض: | قاد |
| جهاز: | البتروكيماويات | نطاق التحكم في درجة الحرارة: | المحيطة ~-50 درجة مئوية |
| سرعة الدوران: | 1 دورة في الدقيقة | تحميل الشامل: | 400H |
| طريقة التبريد: | دانفوس ضاغط الهواء المزدوج | طريقة التوقيت: | مؤقت رقمي |
| قياس عزم الدوران: | مقياس القوة الرقمي | إجمالي الطاقة: | 2 كيلو واط |
| إبراز: | ASTM D4693 grease torque tester,low-temperature wheel bearing tester,grease-lubricated bearing test equipment |
||

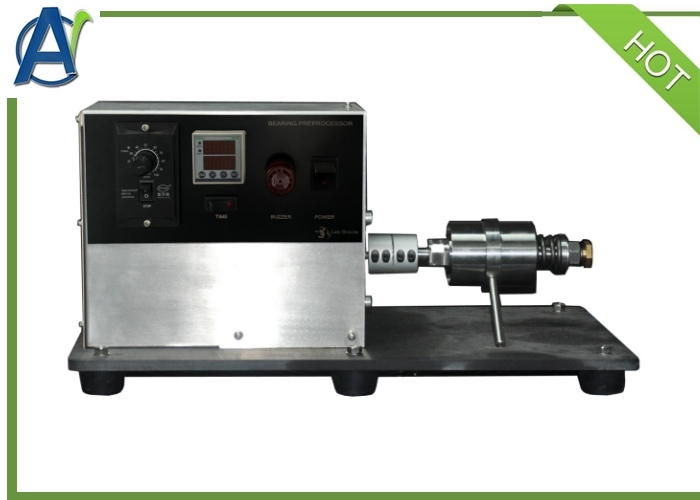

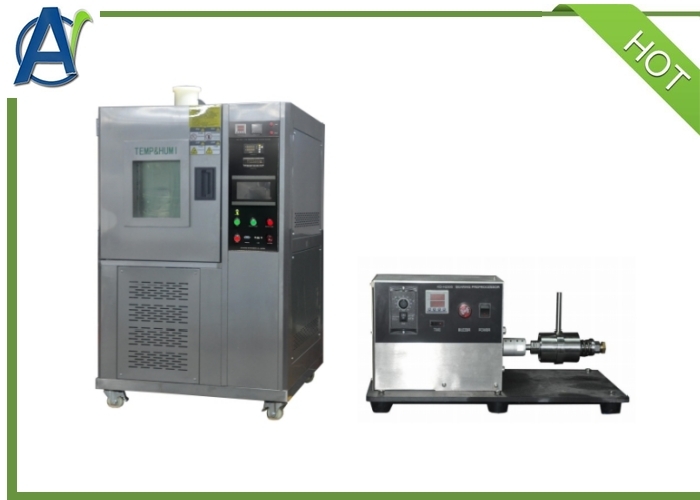

Low-Temperature Torque Tester
I. Introduction:
This Low-Temperature Torque Tester is used to determine the extent to which a test grease retards the rotation of a speciallymanufactured,spring loaded,automotive-type wheel bearing assembly when subjected to low temperatures.Torque values,calculated from restraining-force determinations,are a measure of the viscous resistance of the grease. And it is suitable for grease giving torques of less than 35 N·m at -40℃.
The working principle is:A freshly stirred and worded sampl of test grease is packed into the bearings of a specially-manufactured,automotive-type spindle-bearings-hub assembly.The assembly is heated and then cold soaked at -40 ℃ ,unless another test temperature is specified by the grease specification.The spindle is rotated at 1 rpm and the torque required to prevent rotation of the hub is measured at 60 s.
II. Main Features
1. Standard inboard and outboard tapered roller bearings, LM67010-LM67048 and LM11949

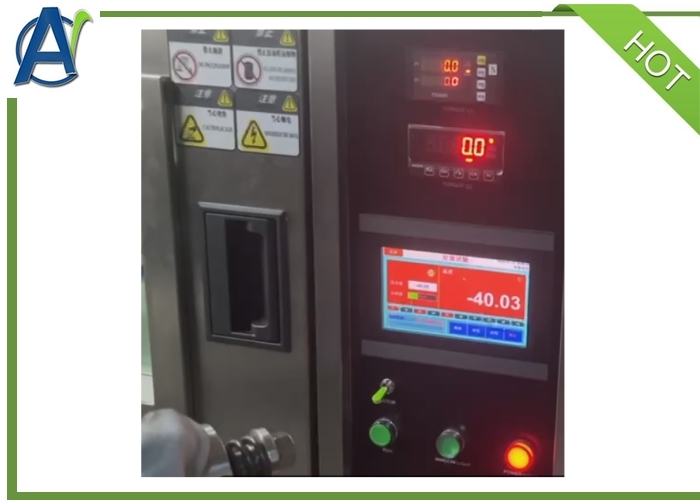

2. Microcomputer temperature controller, temperature control range from normal temperature to -50ºC
3. PT100 temperature sensor, high acquisition accuracy ±0.5ºC

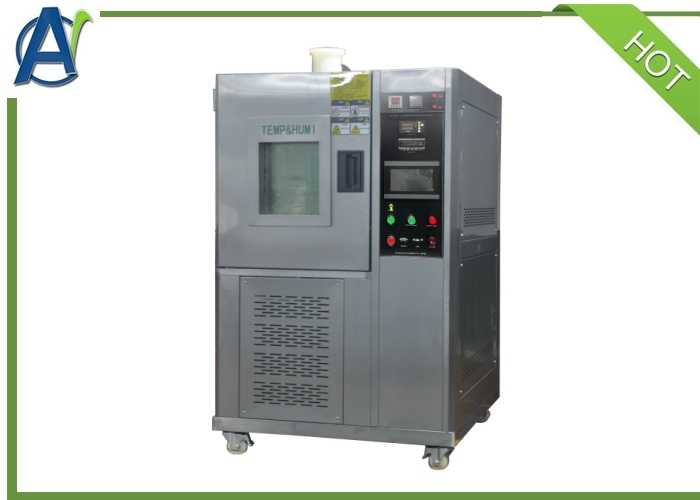

4. This Low Temperature Torque Test Equipment adopts imported compressor cascade refrigeration, low noise.
5. The drive motor adopts a high-speed ratio of 1740/1, which can maintain a stable speed.
6. The low temperature box is insulated with special materials, and there is no temperature influence from the outside.
7. Digital display torque value.
8. The loaded spring can withstand a pressure of 500N and is equipped with a pressure calibration device.
9. Digital display of working hours and alarm.
10.A set of standard grease loader is supplied with Low Temperature Torque Test Equipment.
III. Specifications:
|
Applicable standard
|
NB/SH/T0839,ASTM D4693
|
|
Refrigeration method
|
Danfoss dual air compressor
|
|
Temperature control range
|
Ambient~-50ºC
|
|
Time control
|
Digital timer
|
|
Rotating speed control
|
1r/min
|
|
Torque measurement
|
Digital force gauge
|
|
Torque accuracy
|
0.1%
|
|
Loading mass
|
400N
|
|
Total power
|
2000W
|
|
Power supply
|
AC220v/50Hz
|
|
Dimension
|
800*500*1300mm
|
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
