| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | AIC29743.3 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | USD$30,000~40,000 |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 30 يومًا |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد |
| القدرة على العرض: | 20sets في الشهر |
| وضع التدفئة: | شريط تسخين الجرح | ضغط التشغيل: | 80 ~ 103 كيلو باسكال (يتم عرضه بواسطة مقياس الضغط) |
|---|---|---|---|
| مدة العمل المستمر: | 1064هـ | جهاز التوقيت: | مؤقت رقمي |
| لغة: | إنجليزي | خدمة صانعي القطع الأصلية: | متاح |
| التحكم في درجة الحرارة: | وحدة تحكم درجة حرارة PID الرقمية | إجمالي قوة الآلة: | 3.5 كيلو واط |
| معدل تدفق السائل: | 1.3 ~ 1.6 لتر / ثانية | تراندمارك: | أدوات متقدمة |
| ضمان: | 1سنة كاملة | معيار الاختبار: | GB29743.3 |
| إبراز: | FCV coolant corrosion test bench,fuel cell coolant aging test equipment,GB 29743.3-2025 corrosion test bench |
||

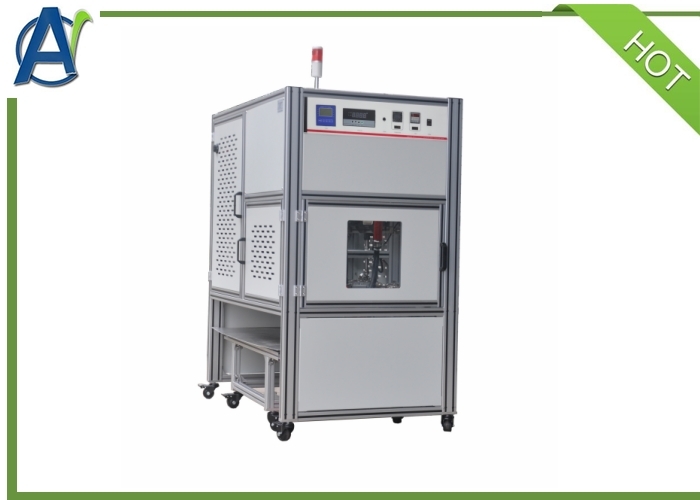

FCV coolant circulation test bench
I. Introduction:
Place the EV coolant into a closed test assembly consisting of a radiator, water pump, power battery cooling plate, liquid storage tank and connecting rubber hoses. Circulate the coolant for 1064 hours at 80°C under a specified flow rate. After the test, evaluate the corrosion protection performance of the EV coolant by measuring the mass change of typical metal test coupons installed in the liquid storage tank and inspecting the inner surface condition of all components in the circulation system.
II. Main Features
1. Standard metal test coupons, six pieces per set, three sets in total.
2. Wound heating tape heater ensuring uniform heat distribution.
3. Grey cast iron reservoir with carbon content 3.2%, silicon 1.8%, manganese 0.75%, complying with standard requirements.
4. Aluminum radiator.
5. Automotive aluminum water pump for test circulation.
6. A heat-resistant glass viewing window is installed on the upper part of the radiator.
7. A thermometer socket is reserved on the reservoir for temperature calibration.
8. Brass bracket capable of mounting three sets of test coupons.
9. Microcomputer temperature controller with digital display, temperature accuracy ±2℃, equipped with PT100 temperature sensor.
10.Digital timer to record test duration.
III. Specifications:
| Applicable Standards | GB 29743.3 |
| Liquid Flow Rate | 1.3~1.6 L/s |
| Heating Mode | Wound Heating Tape |
| Continuous Working Duration | 1064H |
| Temperature Control | Digital PID Temperature Controller |
| Total Machine Power | 3.5KW |
| Temperature Control Range | 88±2℃ |
| Timing Device | Digital Timer |
| Operating Pressure | 80~103 kPa (displayed by pressure gauge) |
| Power Supply | AC220V / 50Hz |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
