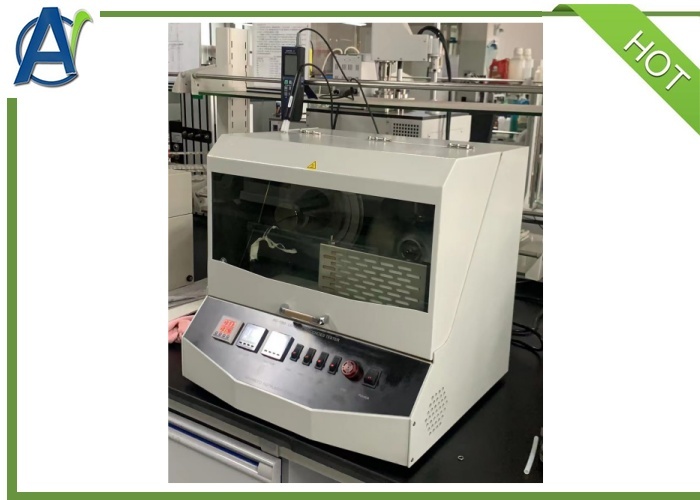

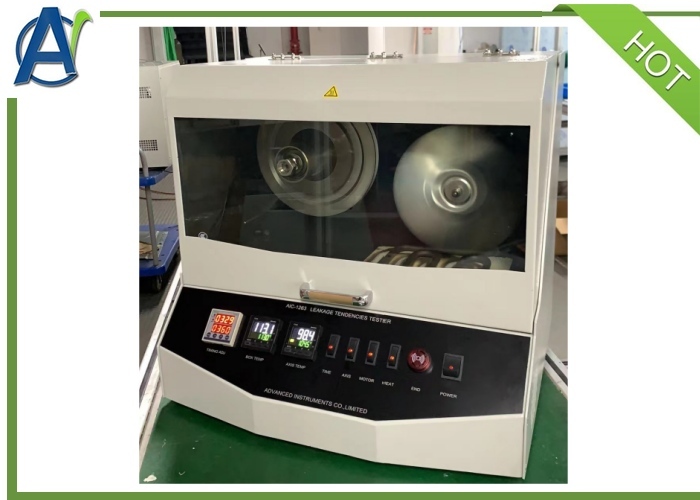

ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing

ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing
ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing
المعلومات الأساسية
مكان المنشأ: الصين
اسم العلامة التجارية: AI
إصدار الشهادات: ISO9001
رقم الموديل: إيك-1263
الحد الأدنى لكمية: 1 مجموعة
الأسعار: USD$3,000~4,000
تفاصيل التغليف: حالة الخشب الرقائقي
وقت التسليم: 30 يوما
شروط الدفع: تي / تي، ويسترن يونيون، خطاب الاعتماد
القدرة على العرض: 20sets في الشهر
افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ
لغة: إنجليزي ضمان: 1سنة كاملة
معيار الاختبار: ASTM D1263 ، SH / T0326 تراندمارك: أدوات متقدمة
خدمة صانعي القطع الأصلية: متاح طريقة التدفئة: حمام معدني
طريقة التوقيت: مؤقت رقمي نطاق التوقيت: 0.01S ~ 99h99m
نطاق التحكم في درجة الحرارة: المحيطة ~ 150 درجة مئوية ± 0.1 درجة مئوية سرعة المحرك: 660r / min ± 30r / min
متحكم درجة الحرارة: أومرون وزن: 43 كجم
مزود الطاقة: 220 فولت ، 50 هرتز إجمالي الطاقة: 1000 واط
موقف العمل: 2 وحدات وظيفة: اختبار تسرب شحوم محامل عجلات السيارات
طلب: اختبار الدهون
إبراز:

ASTM D1263 grease leakage tester

,

automotive wheel bearing tester

,

grease leakage tendency test equipment

I. ASTM D1263 Grease Leakage Tendency Tester

Load the sample into the modified front wheel hub and shaft assembly, and let the hub and shaft run for a total of 360±5 min under the specified conditions. Measure the leakage of grease or oil, and observe the condition of the bearing surface at the end of the sample.
This Leakage Tendencies Test Apparatus is suitable for the determination of the leakage of automobile wheel bearing grease, and can be used to distinguish products with obviously different leakage characteristics.

II. Main Features

1. The Leakage Tendencies Test Apparatus adopts an integrated design with a timeless appearance and easy operation;
2. The unique box-type heating system of inserting the heat pipe rod into the casting body makes the heating speed fast and the temperature control precision is high;
3. The imported motor rotates, with low noise, stable speed, good mechanical performance and little wear;
4. The rotating hub and shaft assembly has a compact structure and small end clearance. The bearings are all imported components, which guarantees reliability and wear resistance;
5. Microcomputer temperature controller, digital display, accuracy ±0.5ºC PT100 sensor;
6. The Leakage Tendencies Test Apparatus adopts Digital display timer to record test time;
7. There is a thermometer hole on the shaft assembly;
8. Standard motor 660r/min±30r/min;
9. The total heating power of the two groups is 660W;
10. There is insulation cotton around the box body for heat insulation.

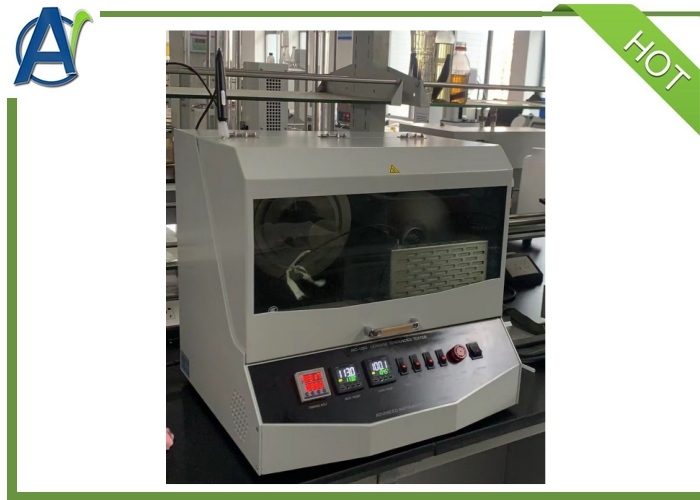

ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing 0

III. Specifications:

Applicable standards ASTM D1263,SH/T0326
Heating method Metal bath
Timing mode and range Digital timer,0.01s~99h99m
Temperature controlling range ambient~150ºC±0.1ºC
Temperature control mode Imported PID
Motor speed 660r/min±30r/min
Weight 43KG
Power supply 1500w
Working power supply AC220V/50HZ
Total power 1000W

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
