| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | أكتوبر-981 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | USD$4,000~5,000 |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 30 يوما |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد |
| القدرة على العرض: | 20sets في الشهر |
| معيار الاختبار: | أكتوبر981 | لغة: | إنجليزي |
|---|---|---|---|
| خدمة صانعي القطع الأصلية: | متاح | وزن: | 30 كجم |
| البعد: | 660 مم * 450 مم * 580 مم | وضع التحكم في درجة الحرارة: | وحدة تحكم درجة الحرارة الرقمية المستوردة PID |
| دقة التحكم في درجة الحرارة: | درجة الحرارة المحيطة ~ 200 درجة مئوية، ±0.1 درجة مئوية | طريقة التدفئة: | تسخين الحمام السائل |
| وضع التوقيت: | مؤقت رقمي | مواقف العمل: | 4 فتحات |
| إجمالي الطاقة: | 2000 واط | ||
| إبراز: | petroleum oil oxidation tester,lubricating oil stability apparatus,oil oxidation resistance test equipment |
||

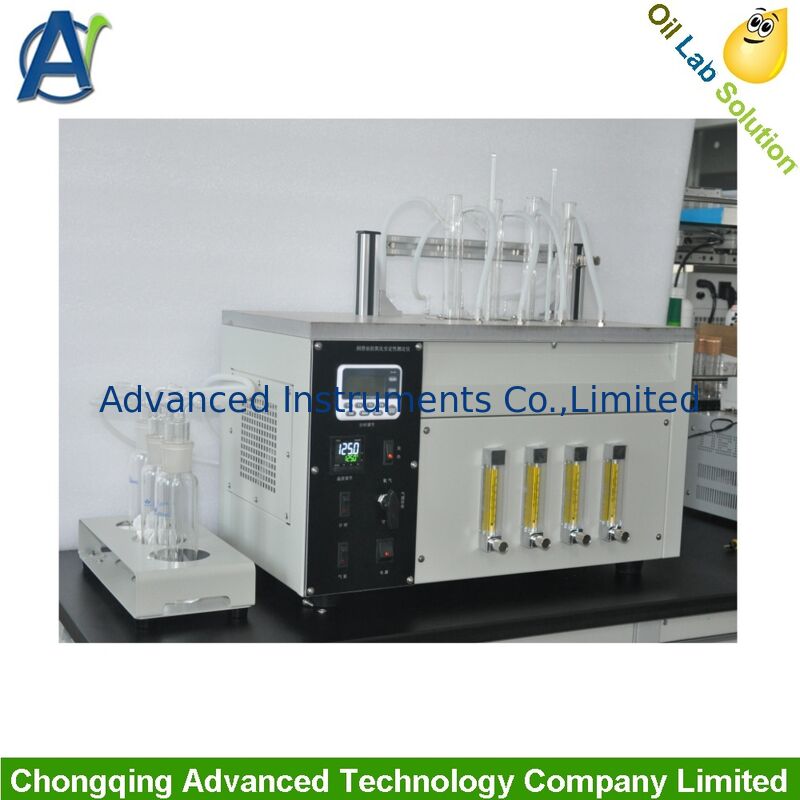

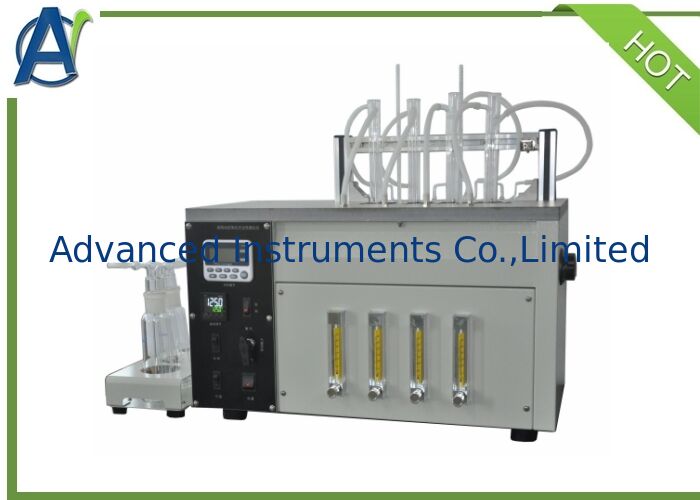

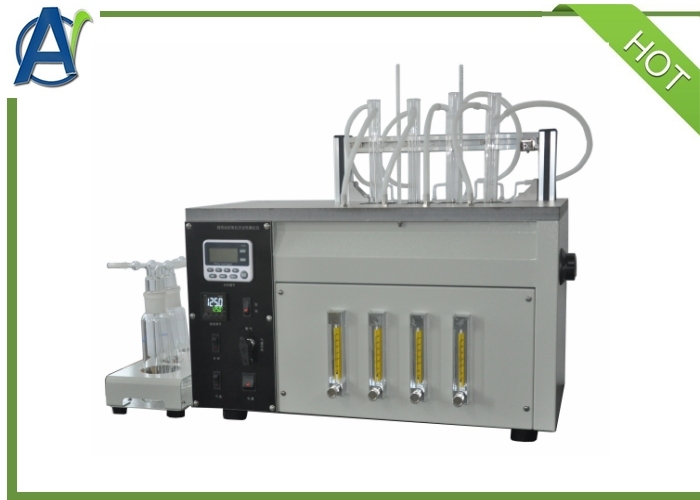

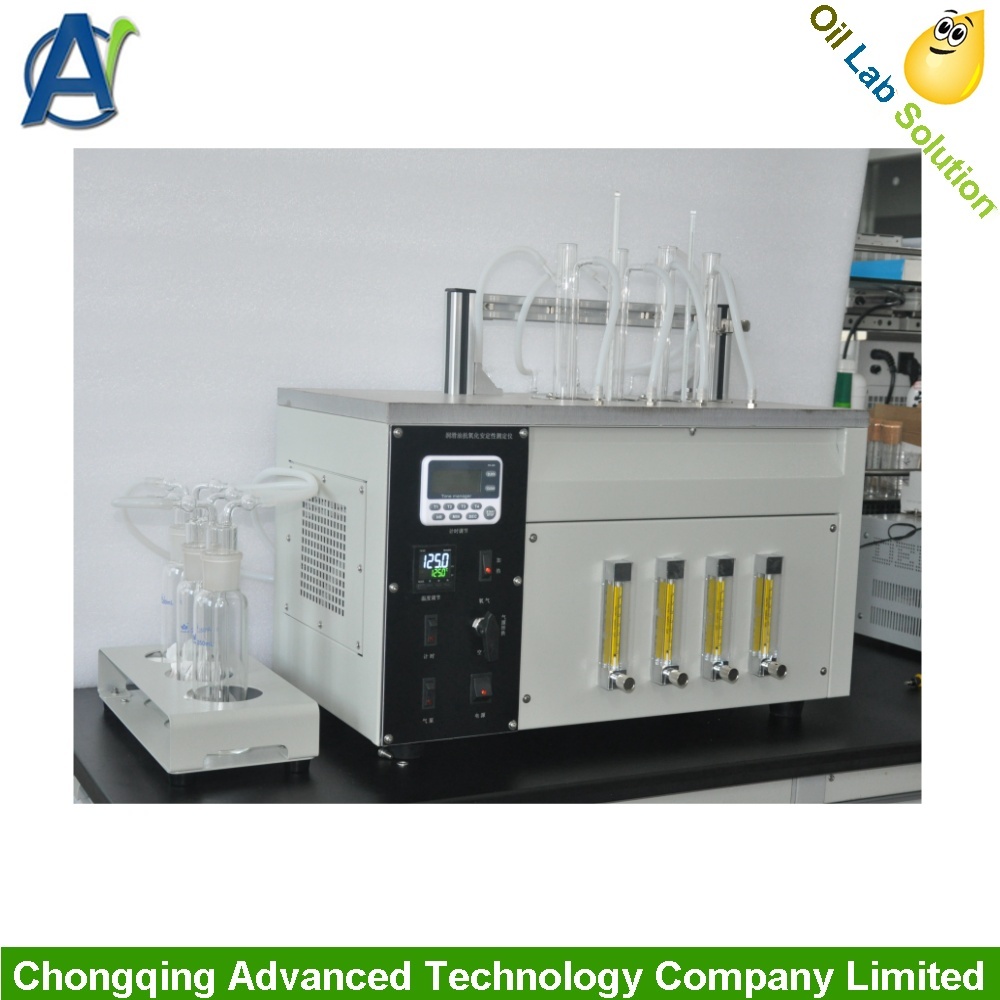

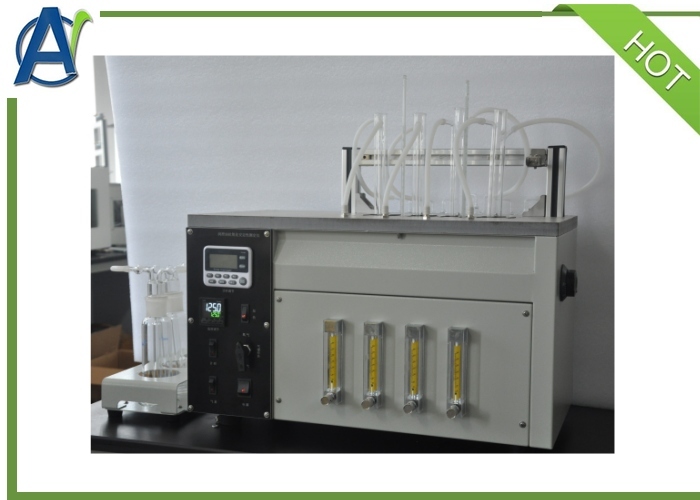

I. Lubricating Oil Oxidation Stability Tester
II.Main technical characteristics
1. Bench-top instrument consisting of heating bath and precision flowmeter; holes are reserved on the stainless steel cover for placing sample bottles.
2. Stainless steel structure with ceramic coating.
3. Eco-friendly liquid bath heating design reduces oil fume harm to operators and delivers excellent thermal insulation performance.
4. Stainless steel heating element.
5. Air filter filled with glass wool.

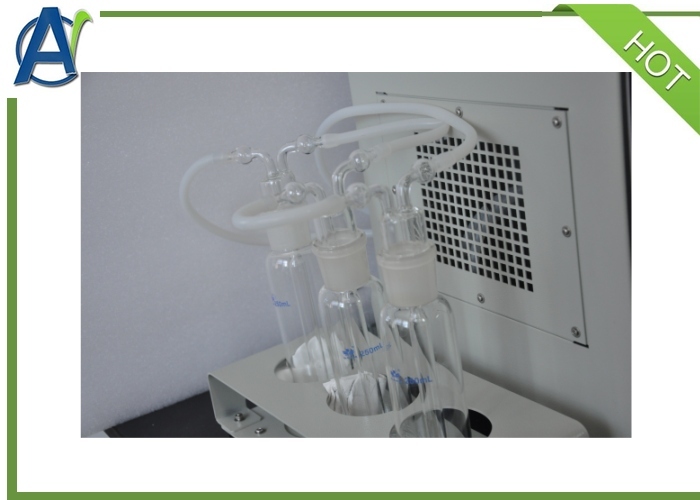

6. Controller purification system equipped with one sodium hydroxide bottle, one sulfuric acid washing bottle and one safety bottle separately.
7. Microprocessor thermostat with PID control and digital temperature readout, temperature accuracy up to 0.1℃, fitted with Pt100 RTD temperature sensor.
8. Operating temperature range: ambient temperature ~ 200℃; overheating and low liquid level protection safety devices are installed.
III. Main technical parameters and index
|
Test standard
|
SH/T0196, OCT981
|
|
Temperature Control Mode
|
Imported PID Digital Temperature Controller
|
|
Temperature Control Accuracy
|
Ambient temperature ~ 200℃, ±0.1℃
|
|
Heating Method
|
Liquid Bath Heating
|
|
Timing Mode
|
Digital Timer
|
|
Working Positions
|
4 Holes
|
|
Total Power
|
2000W
|
|
Dimension
|
660mm*450mm*580mm
|
|
Weight
|
30kg
|
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
