| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | إيك-1831 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | USD$3,000~5,000 |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 30 يوما |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد |
| القدرة على العرض: | 20sets في الشهر |
| معيار الاختبار: | أ.إس.إم.دي1831 | لغة: | إنجليزي |
|---|---|---|---|
| خدمة صانعي القطع الأصلية: | متاح | مزود الطاقة: | AC220V ± 10٪ 50 هرتز |
| طلب: | اختبار الشحوم التشحيم | عرض: | رقمي |
| سرعة الدوران: | 155~180r/دقيقة | استهلاك الطاقة: | 1000 واط |
| وضع التدفئة: | لفائف التدفئة | نطاق التحكم في درجة الحرارة: | 21 ~ 38 درجة مئوية |
| طريقة التوقيت: | مؤقت رقمي | موقف العمل: | 2 وحدات |
| إبراز: | ASTM D1831 grease stability tester,lubricating grease roller tester,grease roll stability testing equipment |
||

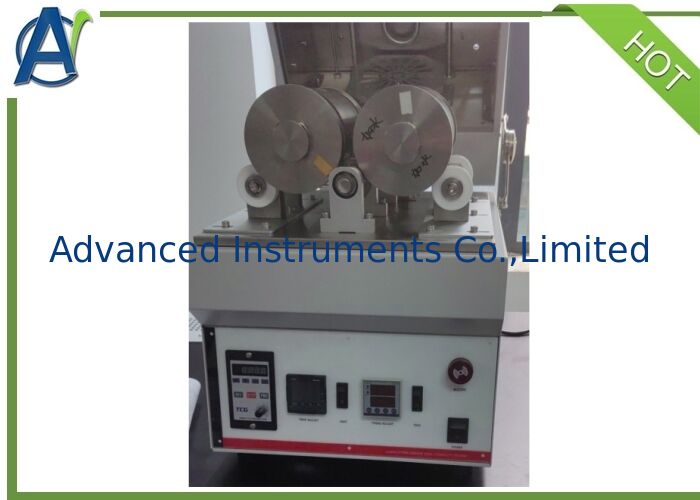

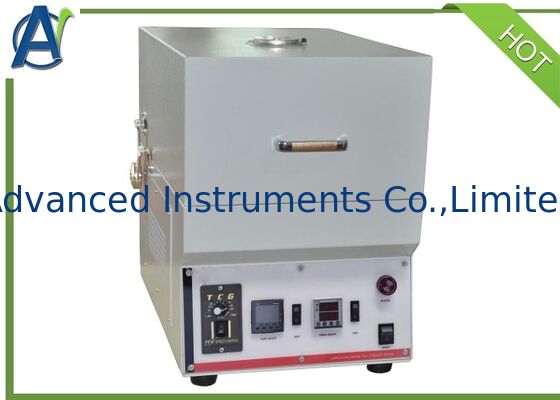

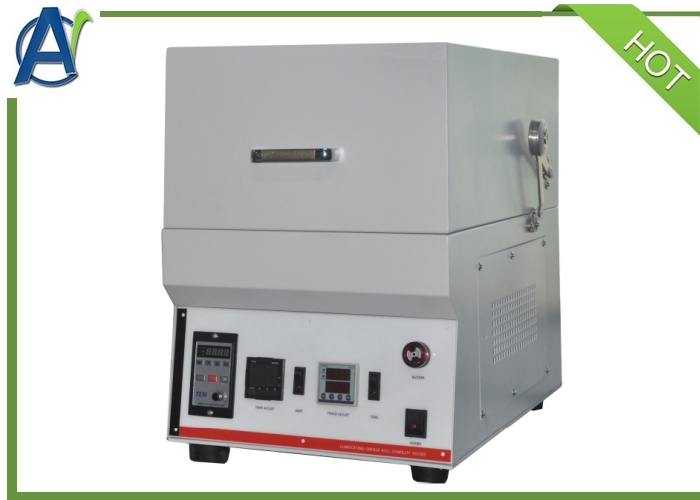

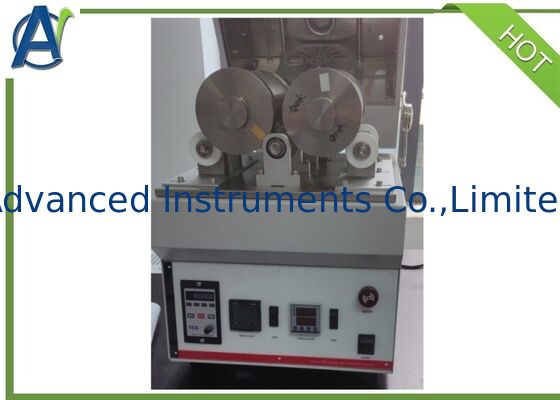

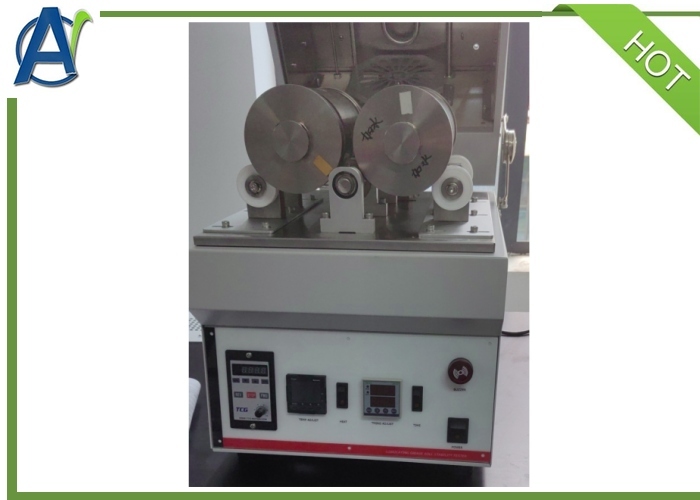

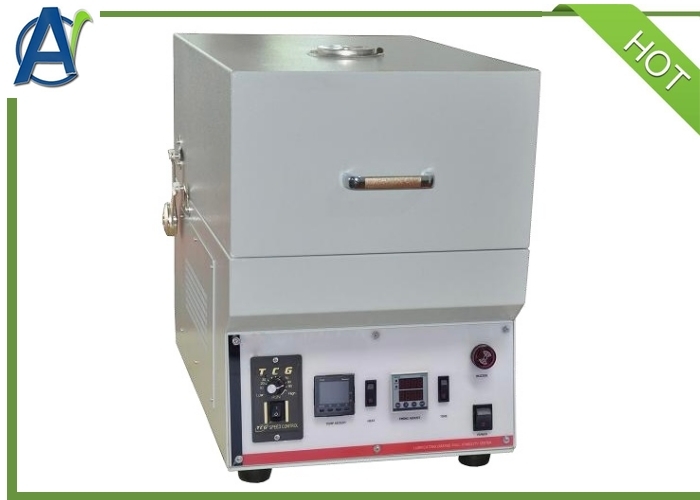

I. ASTM D1831 Lubricating Grease Roll Stability Tester
II.Main technical characteristics

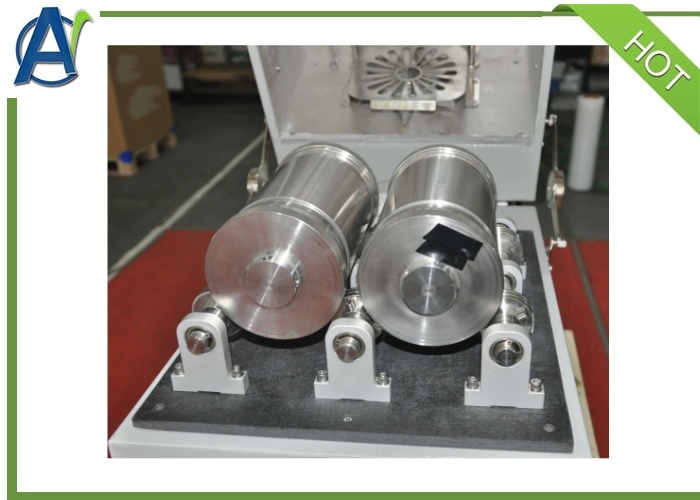

1. The Roll Stability Test Apparatus provides Stainless steel roller Φ90×180mm 5kg.
2.. Idle pulley has locating ring to control the normal working of roller.
3. Driving motor is installed to keep rotating speed 155~180r/min.
4. Roller is drove by belt.
5. Mic-computer temperature controller,digital display,accuracy ±5ºC,Pt 100 sensor.
6. Digital timer can record working time and it has buzzer siren.
7. The Roll Stability Test Instrument can test two rollers simultaneously.
8. There is a hole of thermometer on the cover,and temperature can be corrected by it.
III. Main technical parameters and index
|
Test standard
|
ASTM D1831, SH/T0122
|
|
Power supply
|
AC220V /50HZ
|
|
Rotating speed of motor
|
155~180r/min
|
|
Heating mode
|
heating coil
|
|
Temperature controlling range
|
21~38ºC
|
|
Working Positions
|
2 Units
|
|
Total Power
|
1000W
|
|
Timing
|
Digital timer
|
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
